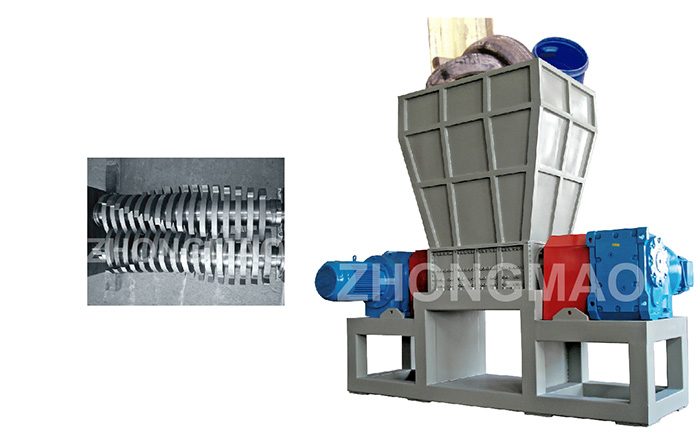

Twin-Shaft Shredder

Features & Application:
The machine is capable of recycling large quantity intractable materials efficiently, such as Wood, Large, hard & solid materials (Waste lumps from extruder), plastic containers, buckets, Plastic pipes, film, fiber, paper, etc.
It is with below advantages: firm design, low noise, low power consumption, and continue working for a long time. The output scraps size can be adjusted to minimum 16mm (Through adjusting the screen), and also don't need the screen if there is no size requirements on output scraps. The Shaft of Knife rotates under low speed. This machine controlled by PLC, to control the loop selective (If overload, rotors will reverse to avoid feeing blocked).


Main Technical Parameters:

Model Motor Power£¨KW£©
Rotation speed£¨r/min£© Knife Diameter£¨mm£©
DS33120 22+22 15 ¦µ330
DS33100 15+15 22 ¦µ330
DS2880 7.5+7.5 30 ¦µ280
DS2860 11 30 ¦µ280
DS2240 7.5 48 ¦µ220
DS40100 22+22 15 ¦µ400
DS40120 30+30 15 ¦µ400
DS40150 37+37 12 ¦µ400
DS40180 37+37 10 ¦µ400
