Features And Application :

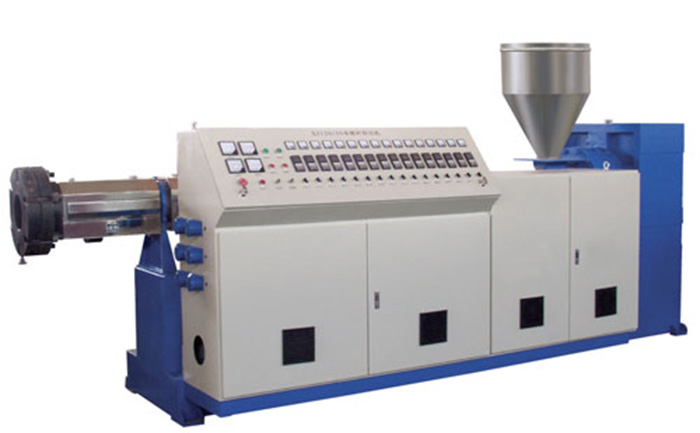

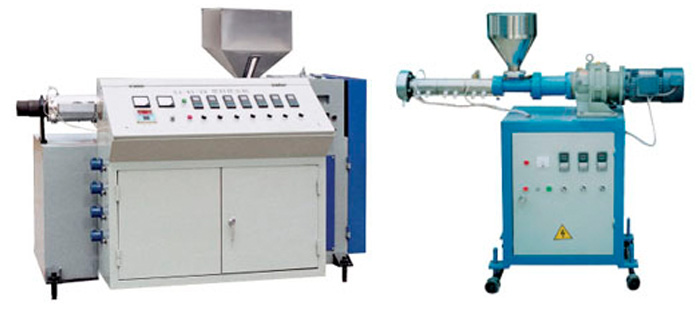

This Machine Is Mainly Used To Process PP, PE, ABS And Other Plastics. Equipped With Auxiliary Machines, It Can Manufacture Profile, Pipes, Sheets And Other Plastic Products And Granulation. It Has The Advantage Of Simple Production Technological Process, High Output, Stable Quality And Low Cost.
Main Technical Parameters:
Name | Slenderness Ration | Output |
Speed Of Screw Rotation | Power | Center Height |
SJ-30/25 | 25:1 | 1.5-10KG/H | 15-150R/MIN | 5.5KW | 1000MM |
SJ-45/25 | 25:1 | 2.5-22.5KG/H | 12.5-130R/MIN | 7.5KW | 850MM 1000MM |
SJ-65/25 | 30:1/25:1 | 80-150KG/H 20-80KG/H | 33-130R/MIN 20-120R/MIN | 37KW 22KW | 1000MM |
SJ-90/25 | 30:1 | 30-110KG/H | 33.3-110R/MIN | 55KW | 1000MM |
SJ-120/25 | 32:1 | 20-150KG/H | 20-60R/MIN | 75KW | 1000MM |
SJ-150/25 | 32:1 | 50-300KG/H | 7-42R/MIN | 90KW | 1100MM |
