Features And Application :

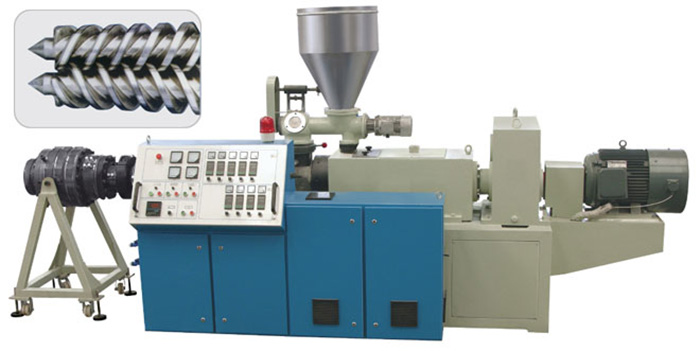

SJZ Series Conical Double Screw Plastic Extruders Are Special Equipments Which Can Extrude And Mold By Using Various Kinds PVC Powders. Equipped With Different Kinds Of Molds And Auxiliary Machines, It Can Produce Various PVC Pipes, Profiles, Sheets, Plates, Bars And Granulation.
Main Technical Parameters:
Item | SJSZ-45 | SJSZ-51 |
SJZ-65 | SJZ-80 | SJZ-92 |
Diameter Of Screw(Mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
Number Of Screw(Mm) | 2 | 2 | 2 | 2 | 2 |
Direction Of Screws | Screw Rotation Direction | ||||
Screw Rotation Speed(Rpm) | 1-37 | 1-32 | 1-34.7 | 1-36.9 | 1-32.9 |
Effective Length Of Screw(Mm) | 985 | 1070 | 1440 | 1800 | 2500 |
Power Of Main Engine (Kw) | 15 | 18.5 | 37 | 55 | 90 |
Barrel Heating Power (Kw) | 12 | 18 | 24 | 36 | 86.8 |
Production Capacity(Kg/H) | 95 | 80-120 | 250-300 | 320-450 | 500-600 |
Center Height(Mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
Net Weight(Kg) | 2800 | 3200 | 4000 | 5000 | 10000 |
Dimensions(Mm)(L¡ÁW¡ÁH) | 3620¡Á1050¡Á2157 | 3000¡Á1050¡Á2200 | 4235¡Á1520¡Á2450 | 4750¡Á1550¡Á2460 | 6725¡Á1550¡Á2841 |
