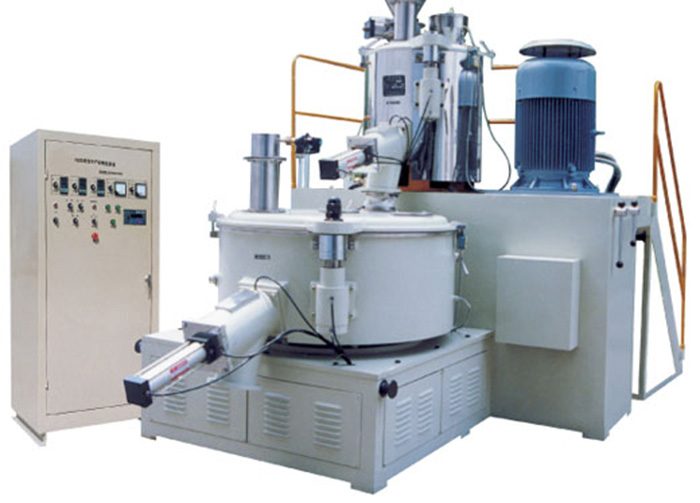

SRL-Z Series Heating/Cooling Mixing Unit

Features And Application :
1.It Is Used In Mixing,Drying,Colouring And Other Processing. It Is The Most Ideal Equipment For Producing Shaped Plastic Material And Plastics Pipes.
2.The Technology Of The Mainshaft Sealed Apparatus Has Got The State Patent And It Has Two Funetions Of Electric And Steam Heating.
3.Two Layers Of Sealing Technology Is Adopted In The Pot Cover. The Opening Of The Heating Mixed Cover Adopted The Airopening Device And The Opening Of The Cooling Mixed Cover Adopted Hydraulic Pressure Control System.
4.The Electric Control Section With The Programmable Logic Control Adopted Well-Known Imported Meters And Control Components.
5.It Is Equipped With The Pulse Dust-Cleaning Recovey Device.
6.The Blades Have Been Passed The Test Of The Dynamic And Static Balance Testing Machine.
7.You May Choose The Simple And Easy Feeding System.

Features And Application :
Adopt special new design, which can make the materials dry in a few seconds, rotors and screens can be equipped according to different materials. It is applicable to both Plastic films and sheets. It adopts hydraulic unit to open the cover, so it can be cleared in short time. With convenient clear, safe and reliable, low power consumption, and high & efficient dehydration, etc.

Main Technical Parameters:

Model		SRL-Z100/200A	SRL-W200/500A	SRL-W300/600A	SRL-W300/1000
Capacity		100/200	200/500	300/600	300/1000
Effective Capacity		75/160	150/320	200/360	200/640
Paddle		650/1300/180	475/950/130	475/950/130	475/950/110
Motor & Heating Power		14/22/7.5/6	30/42/11/9	40/55/11/9	40/55/15/9
WATER CONSUMPTION		3.5	5	5.8	6.7
Gases Consumption		0.3	0.4	0.4	0.4
Heating Method		电加热及自摩擦
Discharge Method		手动/气动
Outlook Size		378018702250	485022402470	468022402740	498025002740
Weight		3.2	3.5	3.8	4.2
Mixing Time	Heat	6-10	6-10	6-10	6-10
Mixing Time	Cool	8-10	8-10	8-10	8-10

Main Technical Parameter：

Model		SRL-Z500/1000A	SRL-W500-1600B	SRL-W800-2000B	SRL-W1000-2500B
Capacity		500/1000	500/1600	800/2000	1000/2500
Effective Capacity		375/640	375/1200	600/1280	750/2600
Paddle		430/260/50	430/860/50	370/740/50	370/740/50
Motor & Heating Power		47/67/15/12	55/75/18.5/12	83/110/30/15	110/160/30/20
WATER CONSUMPTION		7.8	12	14	17
Gases Consumption		0.45	0.45	0.45	0.5
Heating Method		电加热及自摩擦
Discharge Method		手动/气动
Outlook Size		5580/2700/3432	4680/3000/4120	5260/3200/4378	6540/3460/4400
Weight		5.8	8.5	9.5	12
Mixing Time	Heat	6-10	6-10	10	10
Mixing Time	Cool	8-10	8-10	12	12
