Features And Application :

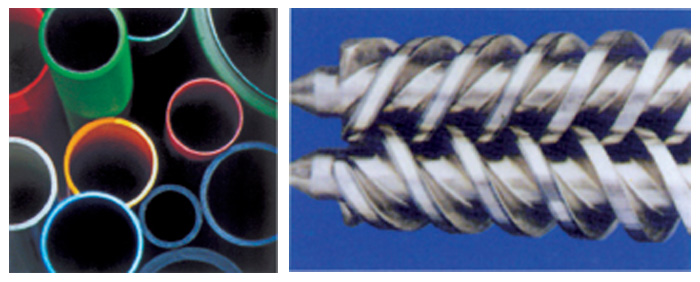

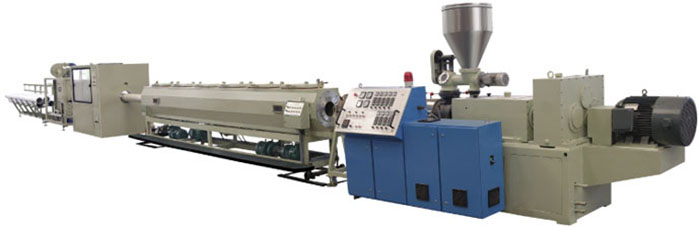

GF Series Plastic Pipe Production Line Is Mainly Used In The Manufacture Of The Plastic PVC Pipes With Various Tube Diameters And Wall Thickness In The Aspects Such As The Agricultural An Agricultural And Constructional Plumbing, Cable Laying Etc. Thin Set Is Composed Of The Conical Twin-Screw Extruder, Vacuum Forming Table, Dragger, Cutter, Stirring Up Rack Etc. The Scres Extruder And The Extractor Adopt The Imported AC Frequency Control Devicc The Vacuum Pump And The Electric Vehicle Motor Employ The Superior Goods. The Prime Mover Has The Traction Modes Such As To Claw, Three-Claw And So On .It May Choose The Saw Blade Cutting Type Or The Planet Cutting Type. It Is Additionally Attached With Measuring Apparatus And The Intensifying Device. The Unit Is Of The Reliable Prefor - Mance And High Production Efficiency. This Company May Allocate The Special Installation For The Manufacture Of The Inner Wall Spiral Coil And Core Ply Blister Tube Set According To The Client S Requirements.
Main Technical Parameters:
| Model |
Max. Diameter
|
Total Power |
Cooling Water |
Compressed Air |
| GF-125 |
125 |
12.93 |
3 |
0.6 |
| GF-160 |
160 |
14.0 |
6 |
0.6 |
| GF-200 |
200 |
18.63 |
6 |
0.6 |
| GF-400 |
400 |
27.5 |
9 |
0.6 |
| GF-630 |
630 |
35 |
12 |
0.6 |
