Features And Application :

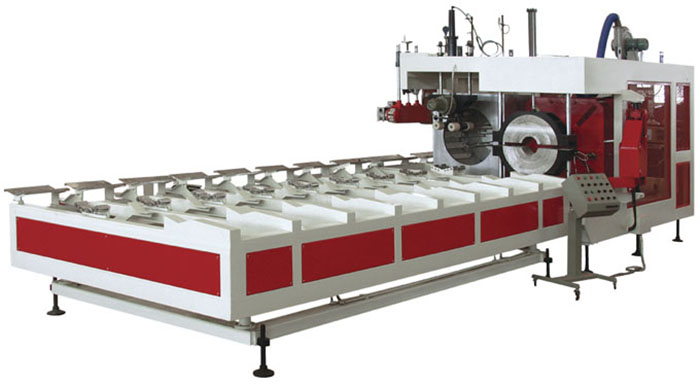

With Technical Advantage Of Xinrong Machinery And In Accordance With The Market Demand Of Pipes Production, We Have Designed, Developed And Manufactured XRLK1125, XRLK2050 Auto Pipe-Expanding Machines With Reference To The Technology Of Sophisticated Equipment From Domestic And Overseas. It Enjoys Such Advantages As Beautiful Appearance, Proper Structure And Easy To Operate And So On.
Equipped With Expanding Mold Of Relative Specifications, XRLK1125, XRLK2050 Auto Pipe-Expanding Machines And Relative Pipes Production Line Can Realize Full Procedure Automatic Production Of Straight Opening And Protruding Opening Pipe-Expanding Of All Plastic Pipes From 75-630.
Main Technical Parameters:
| Height Of Center |
1000-1200mm |
900-1200mm |
| Diameter Specification |
(管材外径)Φ200-630mm |
(管材外径)Φ75-250mm |
| Maximum Length |
8000mm |
8000mm |
| Overall Size |
(L×W×H)8466×2901×2499 |
(L×W×H)7656×1410×1900 |
| Shift Distance During Work |
900mm |
600mm |
| Total Power Of Pipe-Expanding Machine |
50kw |
32kw |
| Oven Outer Maximum Power |
16.8kw |
16kw |
| Oven Inter Maximum Power |
5kw |
3kw |
| Hydraulic Pressure |
1.5-5.5Mpa |
1.5-3.5Mpa |
| Maximum Gas Pressure |
0.7Mpa |
0.6Mpa |
| Total Machine Weight |
7500kg |
2800kg |
